Analyse de données métagénomiques 16S - FROGS

Module 20

Olivier Rué

MaIAGE - Migale

September 12, 2023

FROGS

FROGS team

• FROGS is a INRAE development project

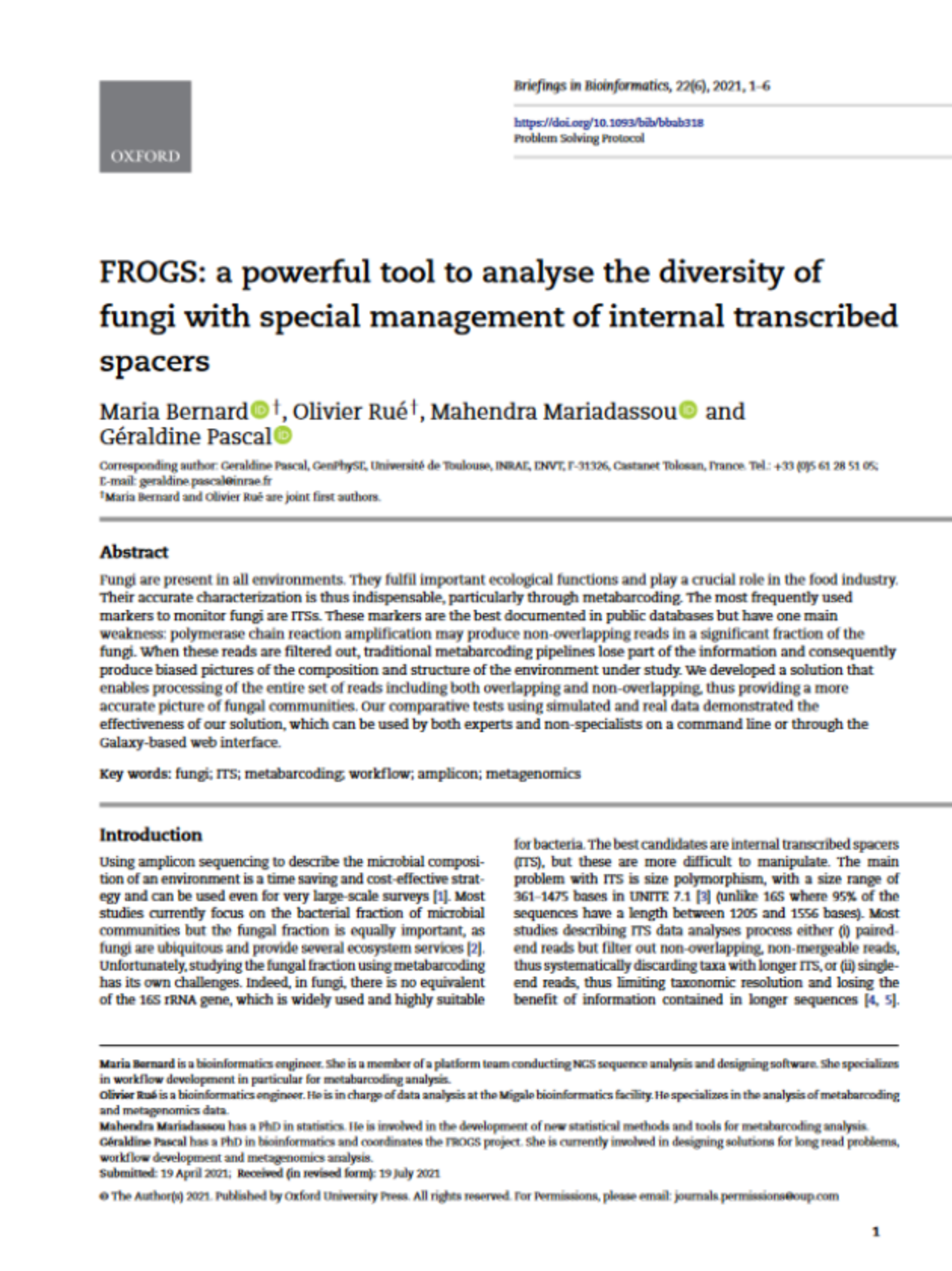

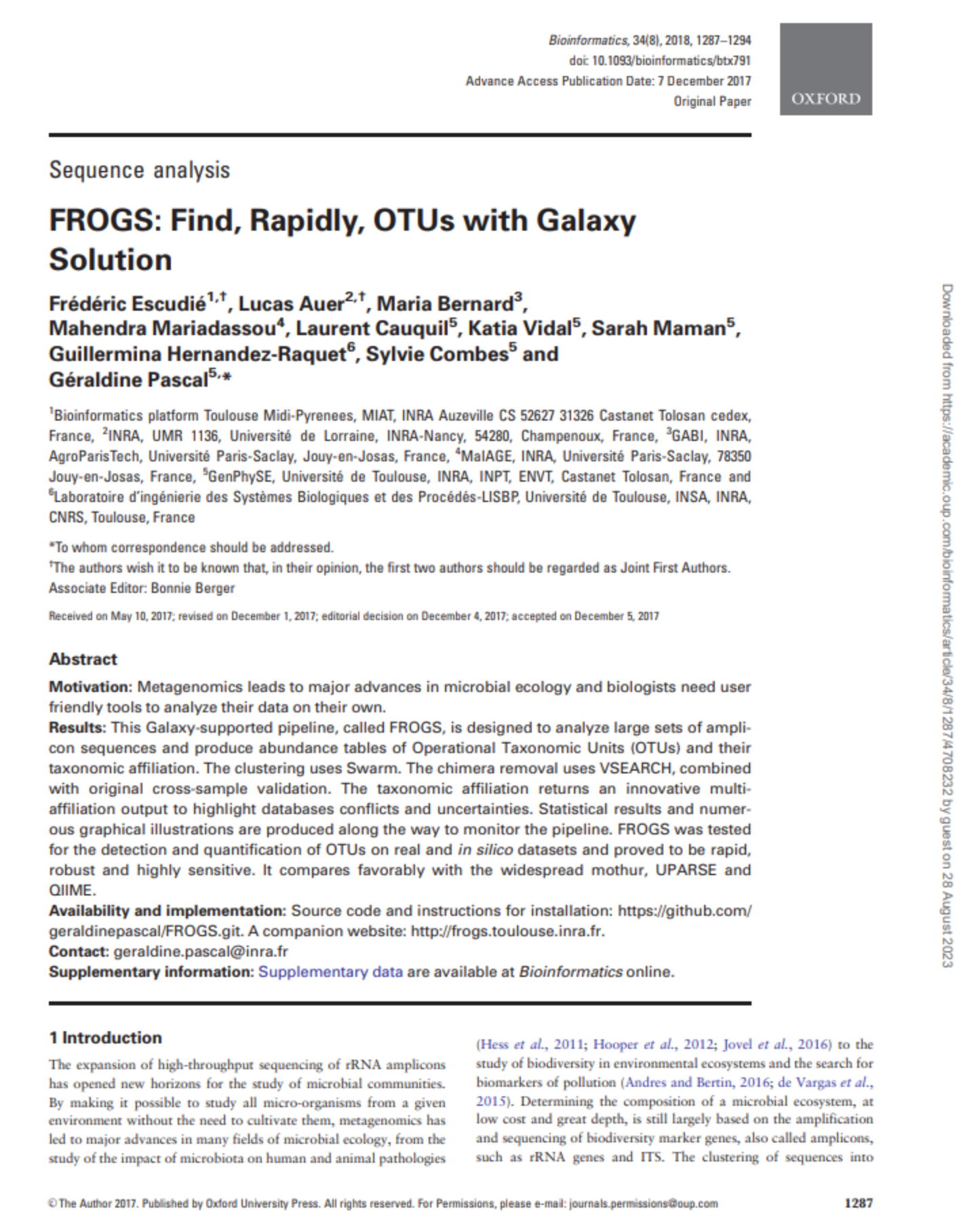

FROGS articles



Frédéric Escudié, Lucas Auer, Maria Bernard, Mahendra Mariadassou, Laurent Cauquil, Katia Vidal, Sarah Maman, Guillermina HernandezRaquet, Sylvie Combes, Géraldine Pascal. “FROGS: Find, Rapidly, OTUs with Galaxy Solution.” Bioinformatics, , Volume 34, Issue 8, 15 April 2018, Pages 1287–1294 [1]

Maria Bernard, Olivier Rué, Mahendra Mariadassou and Géraldine Pascal; FROGS: a powerful tool to analyse the diversity of fungi with special management of internal transcribed spacers, Briefings in Bioinformatics 2021, 10.1093/bib/bbab318 [2]

How to use FROGS

• Command line

remove_chimera.py
  --input-biom clustering.biom \
  --input-fasta clustering.fasta \
  --non-chimera remove_chimera.fasta \
  --out-abundance remove_chimera.biom \
  --summary remove_chimera.html

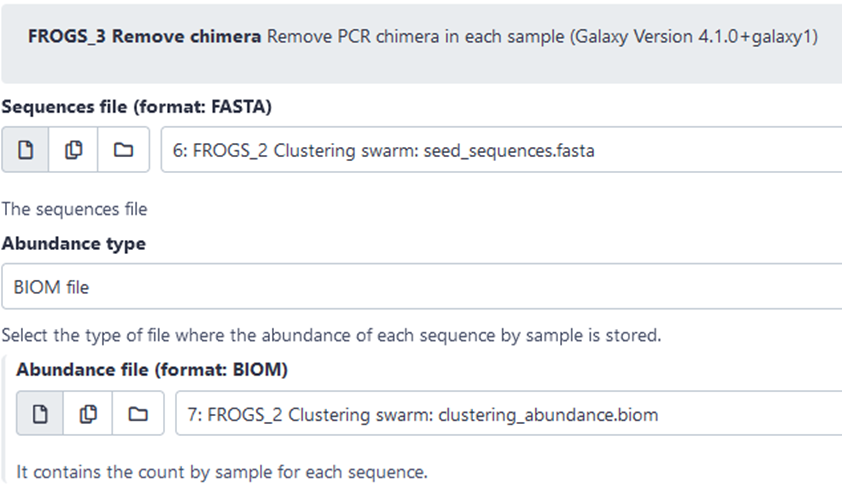

• Galaxy instances via web

• Migale - https://galaxy.migale.inrae.fr/
• Genotoul - https://vm-galaxy-prod.toulouse.inrae.fr/
• IFB - https://metabarcoding.usegalaxy.fr/

FROGS docs and help

• Website: https://frogs.toulouse.inrae.fr
• Github: https://github.com/geraldinepascal/FROGS.git
• Newsletter: subscription request at frogs-support@inrae.fr
• Need help
  • frogs-support@inrae.fr for generic questions
  • help-migale@inrae.fr for bugs/quotas/errors with Galaxy Migale instance

TP1: Introduction to Galaxy

Sequencing data

FASTQ format

@ST-E00114:1342:HHMGVCCX2:1:1101:3123:2012 1:N:0:TCCGGAGA+TCAGAGCC
CTTGGTCATTTAGAG
+
***<<*AEF???***
@ST-E00114:1342:HHMGVCCX2:1:1101:11556:2030 1:N:0:TCCGGAGA+TCAGAGCC
CATTGGCCATATCAT
+
AAAE??<<*???***

Meaning

@Identifier1 (comment)
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
+
QQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQ
@Identifier2 (comment)
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
+
QQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQQ

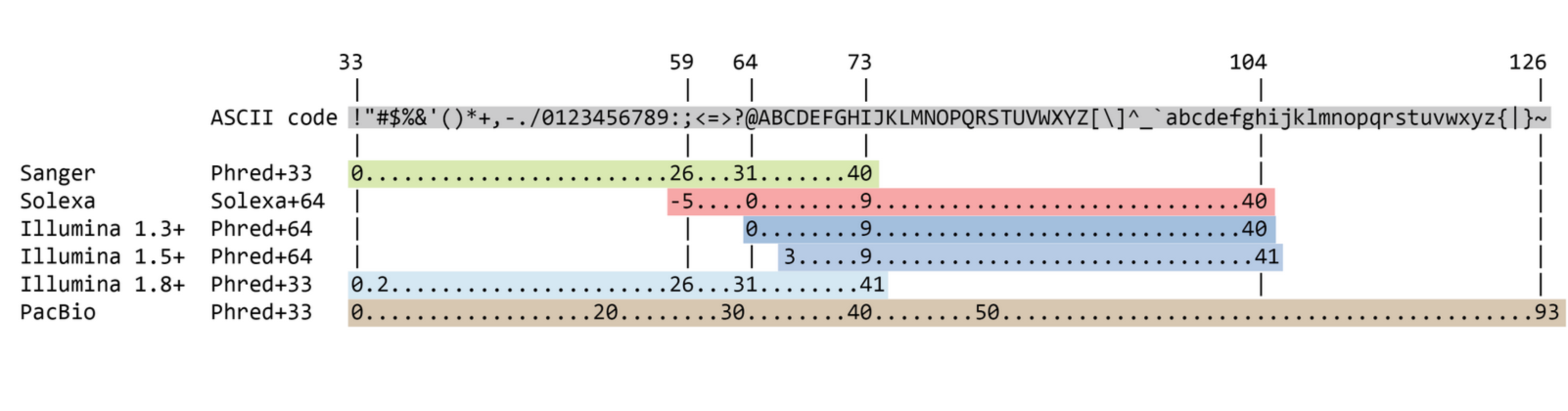

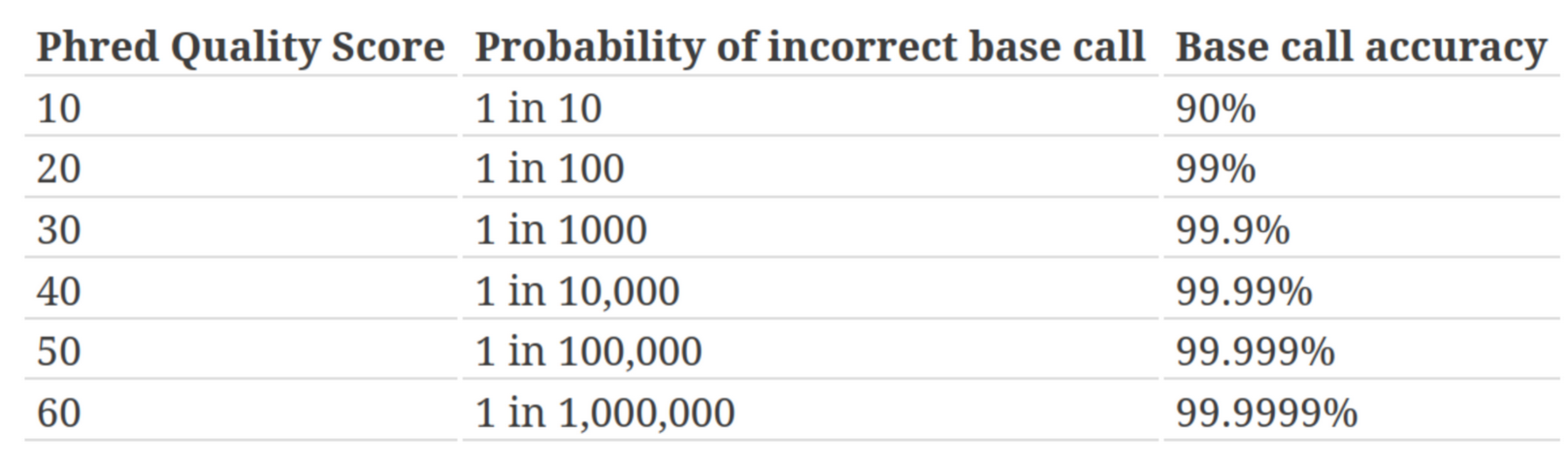

Quality score encoding

Quality score

Measure of the quality of the identification of the nucleobases generated by automated DNA sequencing

FASTQ compression

• Compression is essential to deal with FASTQ files (reduce disk storage)
• extension: file.fastq.gz
• Tools are (almost all) able to deal with compressed files

Quality control

Quality control

• One of the most easy step in bioinformatics …
• … but one of the most important
• check if everything is ok
• Indicates if/how to clean reads
• Shows possible sequencing problems
• The results must be interpreted in relation to what has been sequenced

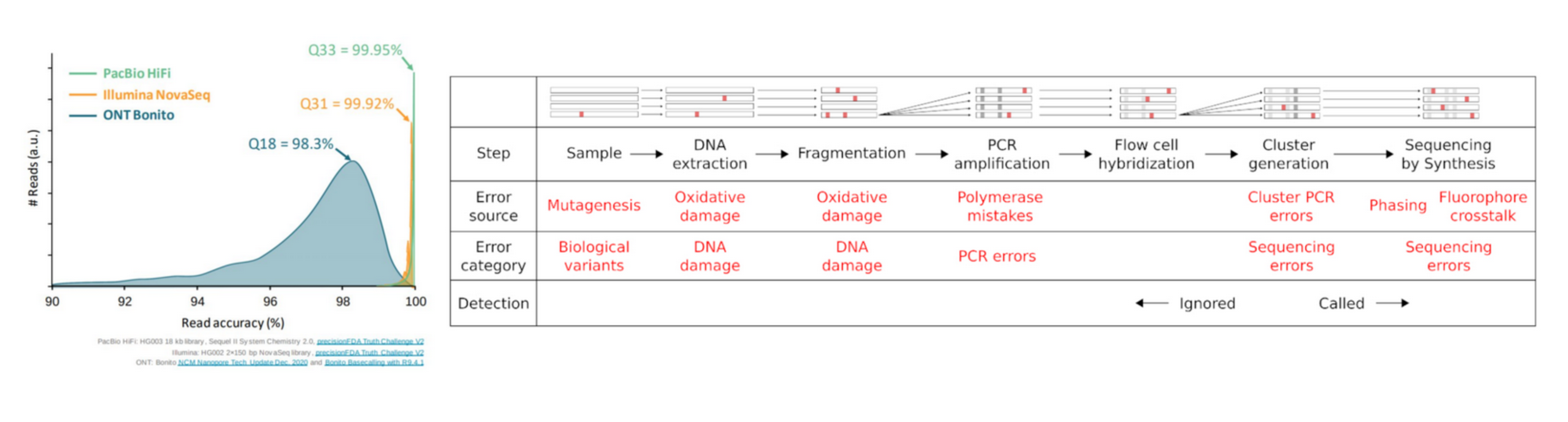

Reads are not perfect

Sequencing error profiles of Illumina sequencing instruments [3]

Why QC’ing your reads?

Try to answer to (not always) simple questions:

• Are data conform to the expected level of performance?
  • Size / Number of reads / Quality
• Residual presence of adapters or indexes?
• (Un)expected techincal biases?
• (Un)expected biological biases?

Warning

QC without context leads to misinterpretation!

TP2: Quality control

Demultiplexing

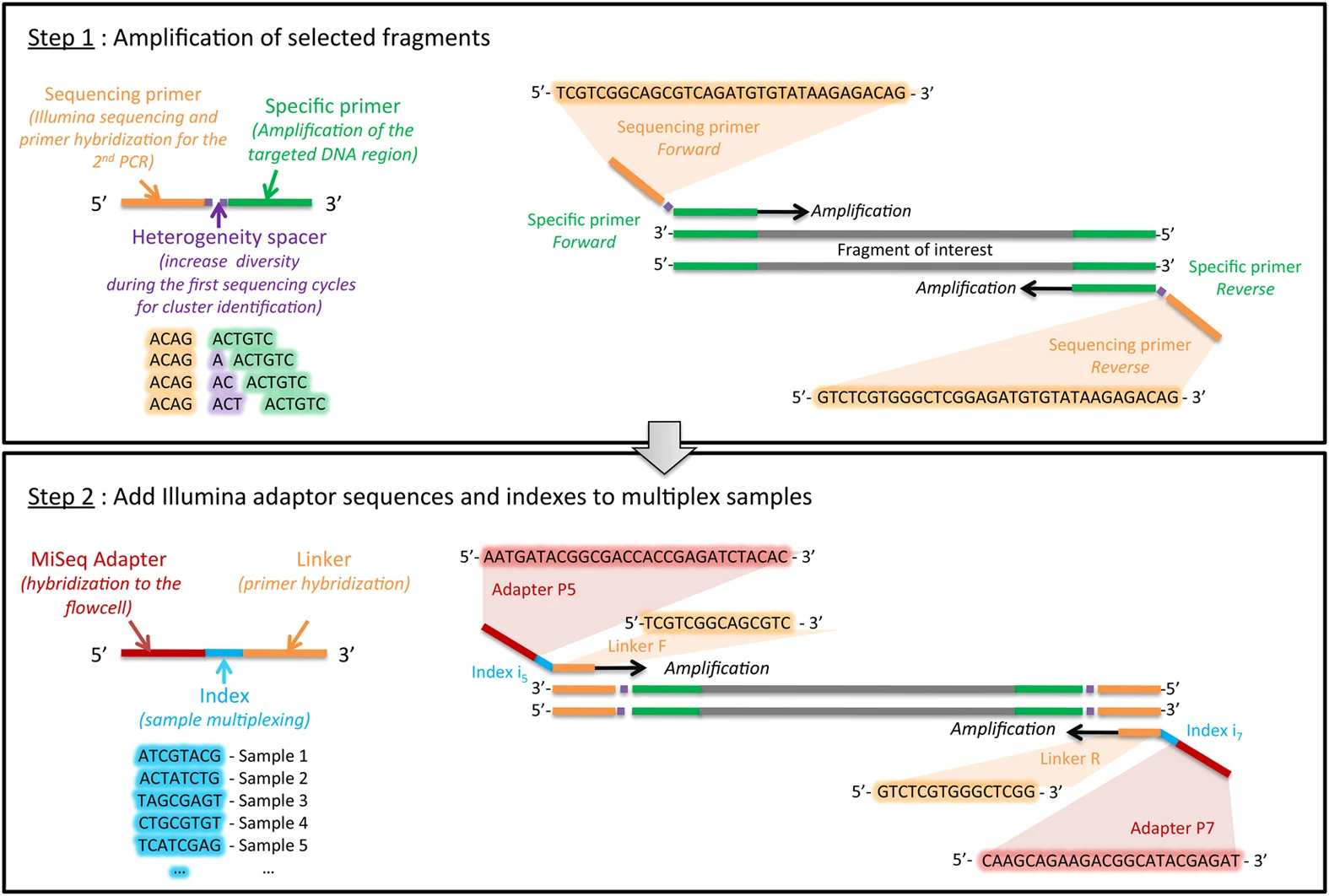

Multiplexing principle

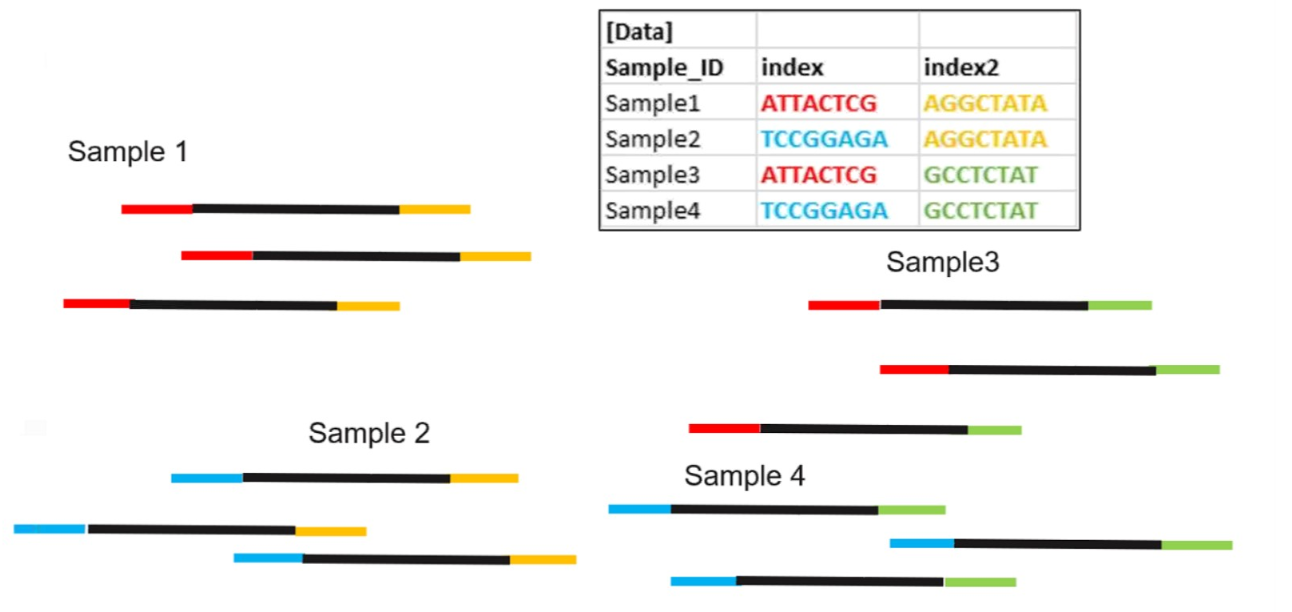

Demultiplexing by bioinformatics

Credits: https://biocellgen-public.svi.edu.au/mig_2019_scrnaseq-workshop/processing-raw-scrna-seq-data.html

Demultiplexing tool

• Assign each read to FASTQ files depending on barcode found
• BARCODE FILE is expected to be tabular:
  • first column corresponds to the sample name (unique, without space)
  • second to the forward sequence barcode used (None if only reverse barcode)
  • optional third is the reverse sequence barcode (optional)

TP DEMULTIPLEXING

Advices

• Do not forget to indicate barcode sequence as they are in the fastq sequence file, especially if you have data multiplexed via the reverse strand.
• For the mismatch threshold, we advised you to let the threshold to 0, and if you are not satisfied by the result, try with 1. The number of mismatch depends on the length of the barcode, but often those sequences are very short so 1 mismatch is already more than the sequencing error rate.
• If you have different barcode lengths, you must demultiplex your data in different times beginning by the longest barcode set and used the “unmatched” or “ambiguous” sequence with smaller barcode and so on.

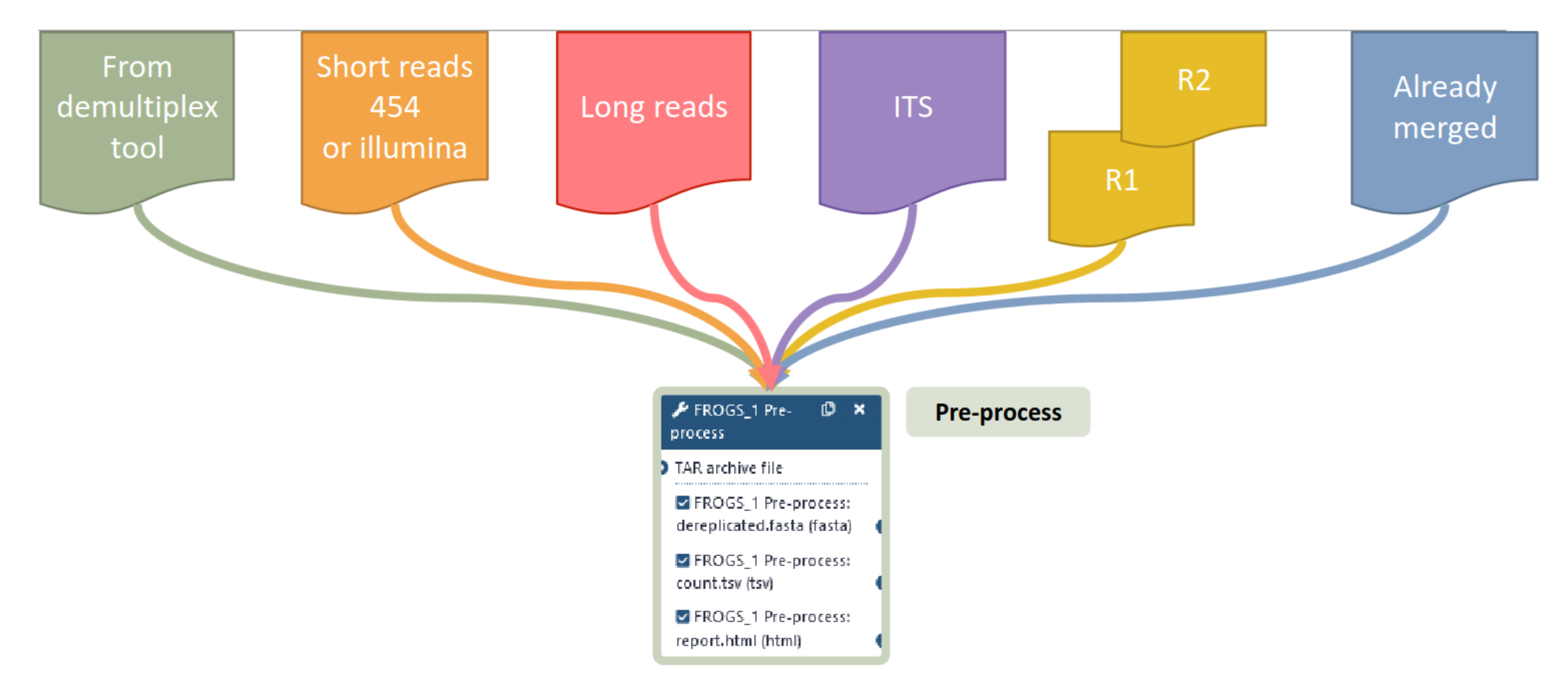

FROGS preprocess

What FROGS preprocess does?

• Merging of R1 and R2 reads with vsearch [4], flash [5] or pear [6] (only in command line)
• Deletes sequences without good primers
• Finds and removes adapter sequences with cutadapt
• Deletes sequence with not expected lengths
• Deletes sequences with ambiguous bases (N)
• Dereplication
• removing homopolymers (size = 8) for 454 data
• quality filter for 454 data

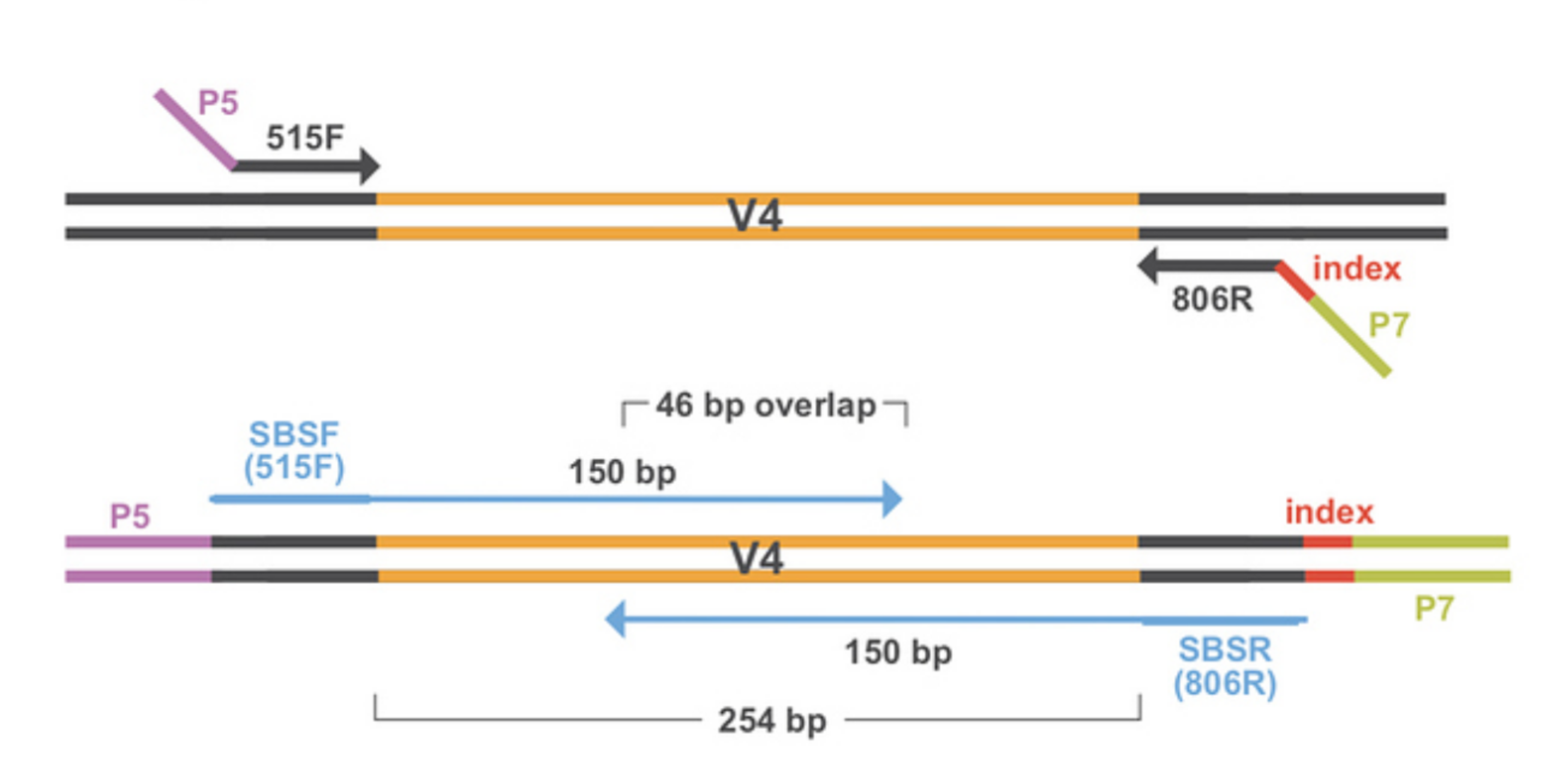

Merging of paired-end reads

TP FROGS preprocess

Clustering

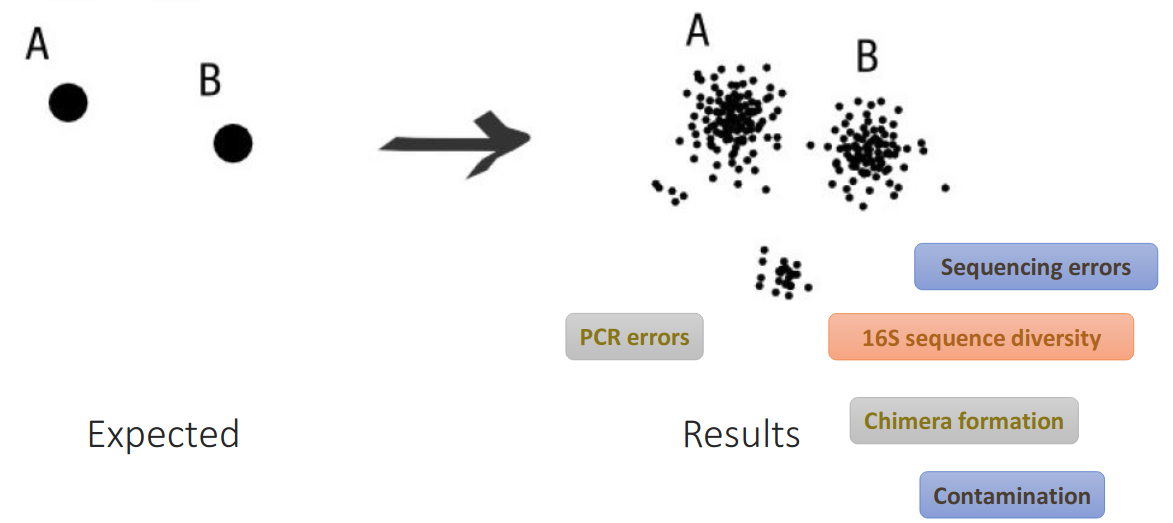

Sequencing data are noised

How to deal with these noised sequences?

• Comparison all against all
  • Very accurate
  • Requires a lot of memory and/or time
• Clustering
  • closed-reference / open-reference
  • de novo
• Denoising

Vocabulary

• A lot of terms for features built by softwares
  • OTUs, zOTUS, ASVs, ESVs…
• A recent review establishes the vocabulary [7]
  • OTUs / ASVs / swarm clusters
• ASVs are identical denoised reads with as few as 1 base pair difference between variants, representing an inference of the biological sequences prior to amplification and sequencing errors
• OTUs are formed with a % threshold clustering
• Swarm clusters are a third feature type

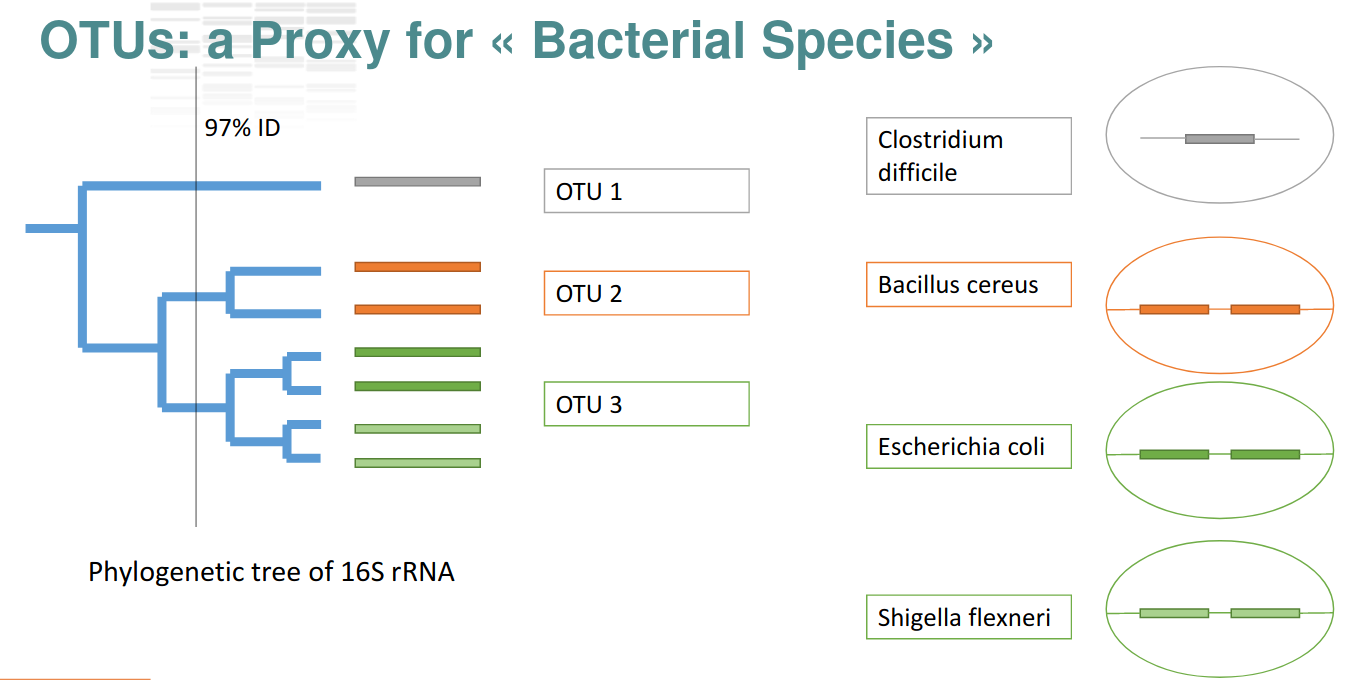

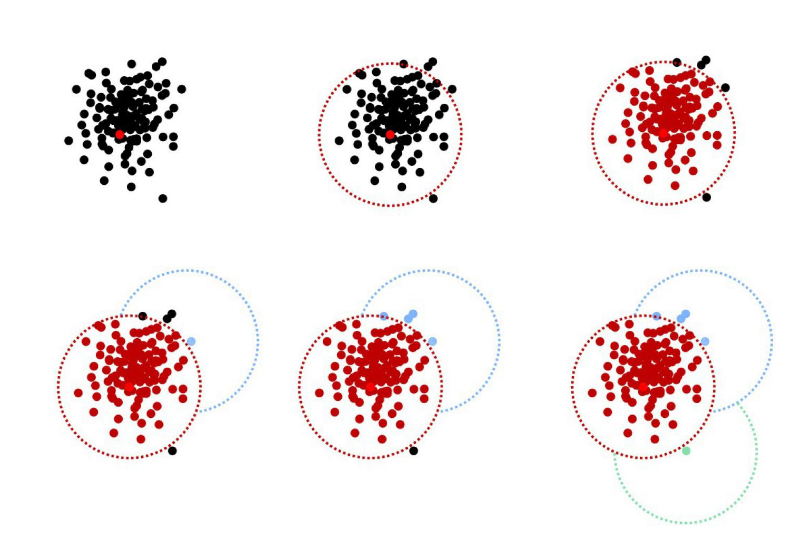

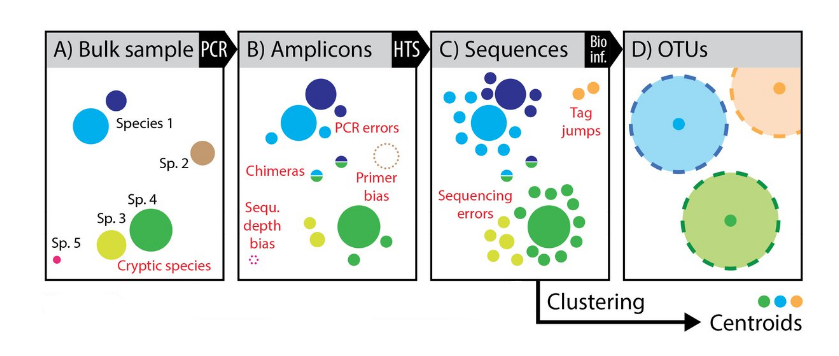

OTU paradigm

• Operational Taxonomic Unit

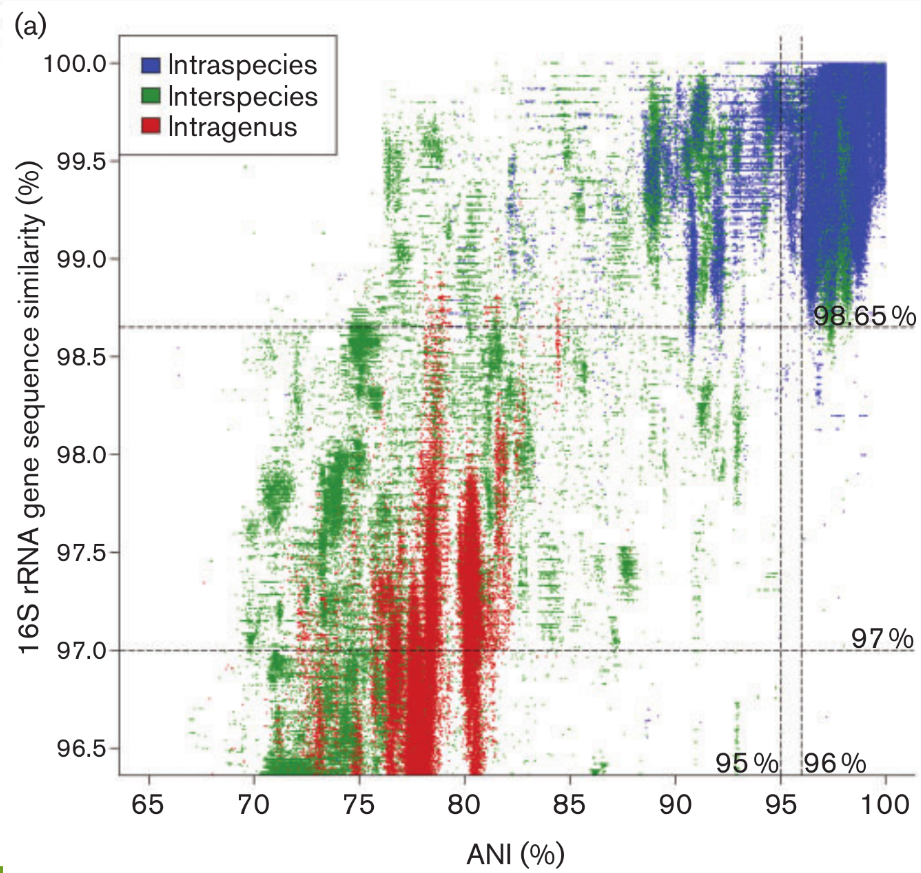

Operational Taxonomic Units

Operational Taxonomic Units

Operational Taxonomic Units

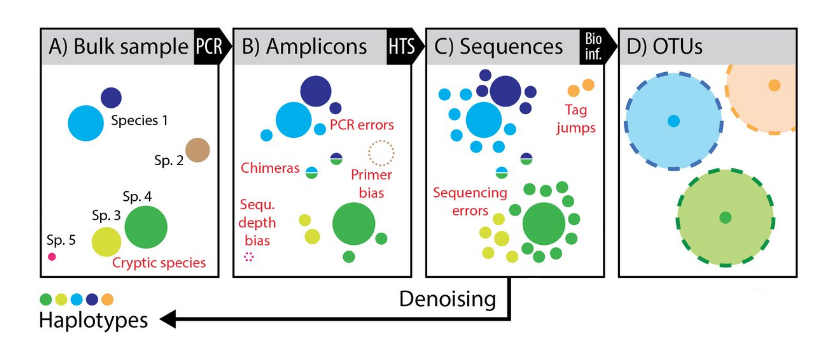

ASV paradigm

• Amplicon Sequence Variants

ASV are inferred by a de novo process in which biological sequences are discriminated from errors on the basis of the expectation that biological sequences are more likely to be repeatedly observed than are error-containing sequences

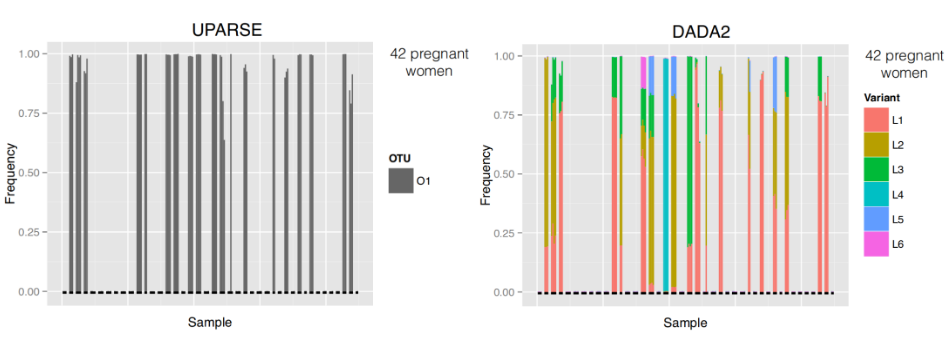

ASV resolution

• ASV resolution changes the composition for these samples

Credits: https://benjjneb.github.io/dada2/SMBS_DADA2.pdf

Swarm

Swarm [8] is a notably different sequence clustering approach, which, while technically a clustering algorithm, may also be considered a denoising method when using the fastidious method with d=1. It relies on the maximum number of differences between reads (local linking threshold) and forms clusters that are resilient to input-order changes, thus creating stable, high-resolution features (herein referred to as swarm-clusters). When using the fastidious method with d=1, swarm aims to produce clusters centered around real biological sequences, where clusters represent sequence variants.

Since FROGS uses swarm (with the fastidious method with d=1) and strongly promotes denoising by chimera removal and cluster filtering, FROGS produces ASVs.

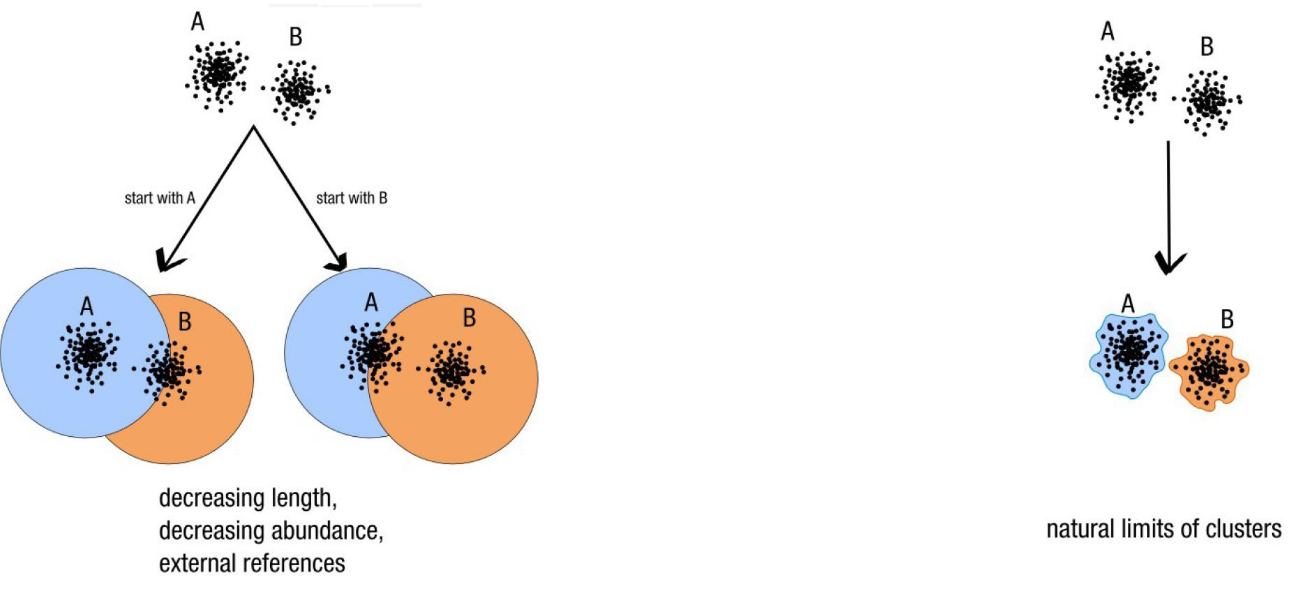

Why Swarm?

• Fixed clustering threshold is a real problem
• OTUs construction is input-order depenent

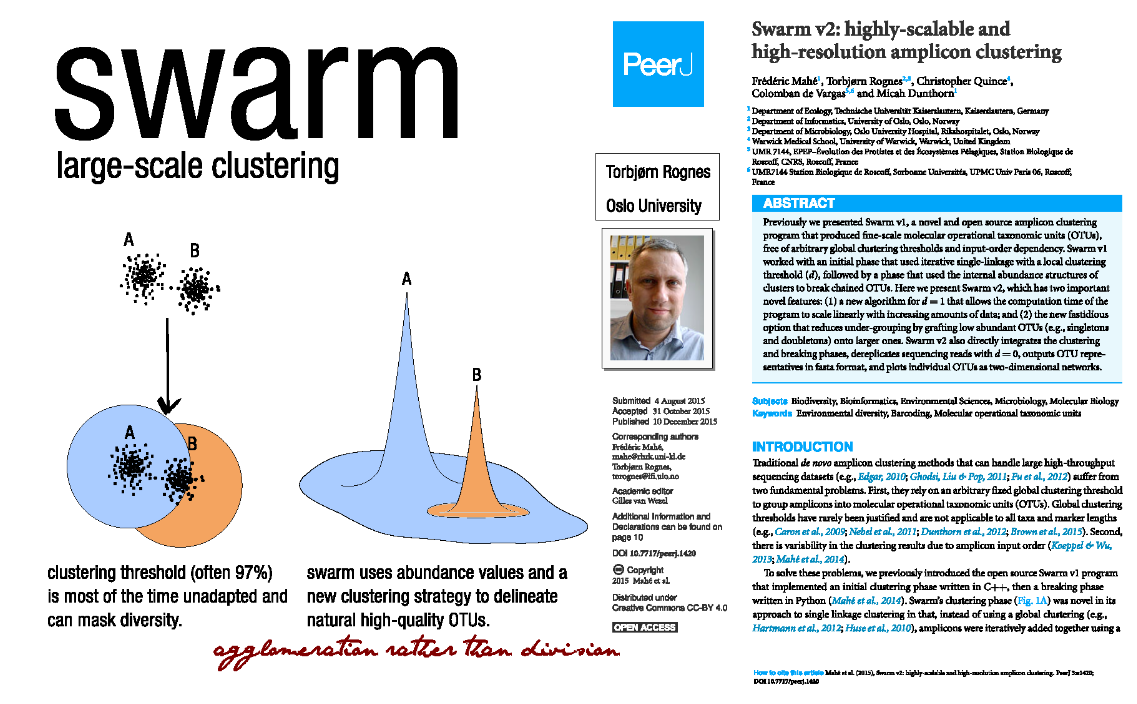

Swarm: A smart idea

Mahé et al., 2015: Swarm v2: highly-scalable and high-resolution amplicon clustering [8]

Swarm

• A robust and fast clustering method for amplicon-based studies
• The purpose of swarm is to provide a novel clustering algorithm to handle large sets of amplicons
• swarm results are resilient to input-order changes and rely on a small local linking threshold d, the maximum number of differences between two amplicons
• swarm forms stable high-resolution clusters, with a high yield of biological information
• Default: forms a lot of low-abundant OTUs that are in fact artifacts and need to be removed
• Swarm (fastidious method + d=1) clusters + filters → ASVs

d: the small local linking threshold

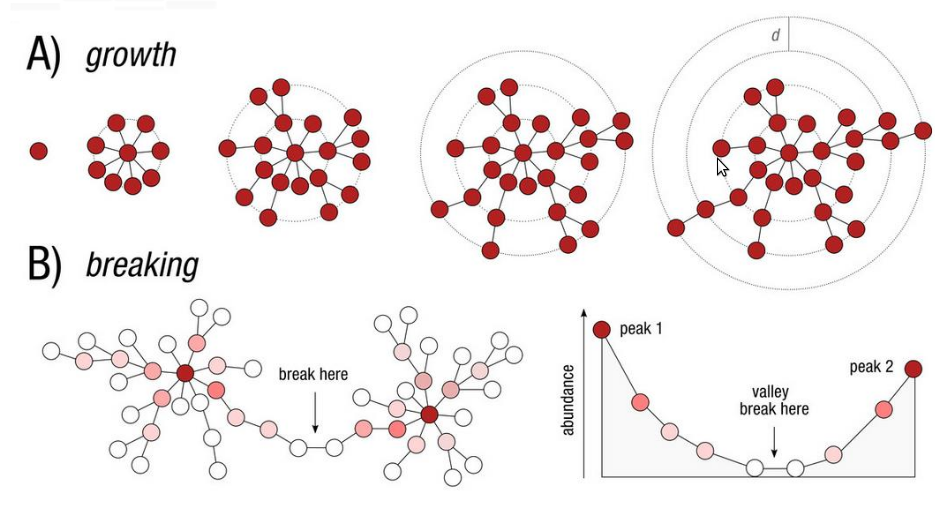

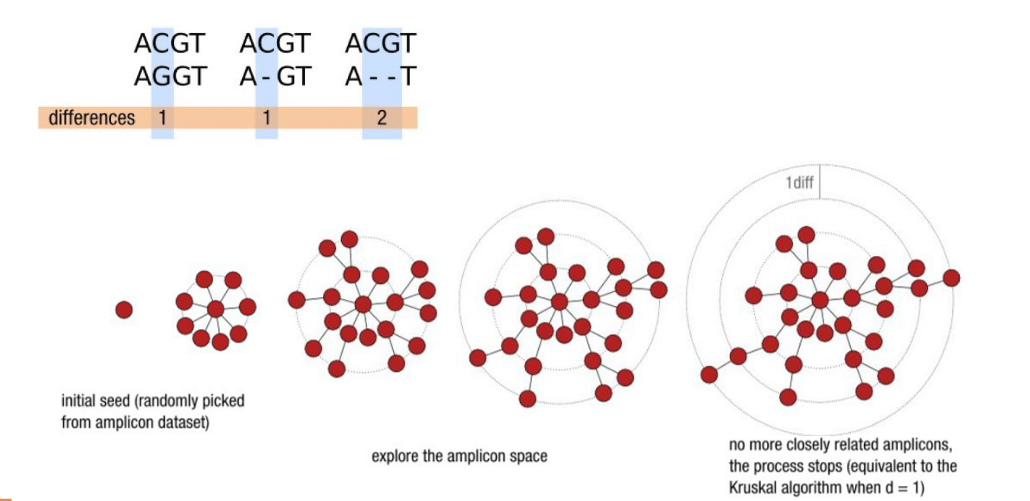

Swarm steps

Which method to choose?

Advantages and inconvenients

• Which type of features to prefer may be context-dependent, and both may even be used in the same study
• ASV demonstrate a biologically informative fine-scale resolution [9]
• But difficult to separate noise from a real signal in low abundant reads [10]
• ASVs represent stable and reproducible units across studies whereas OTUs are dataset-specific features (swarm clusters are not )
  • problematic for longitudinal and very big studies

FROGS will soon offer the choice between swarm and dada2 for ASV creation

TP FROGS clustering

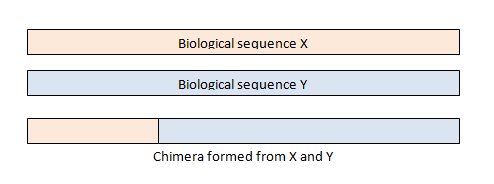

Chimera removal

Chimera detection strategies

• Reference based: against a database of «genuine» sequences

  • dependant of the references used

• De novo: against abundant sequences in the samples

• FROGS uses vsearch [4] as chimera removal tool

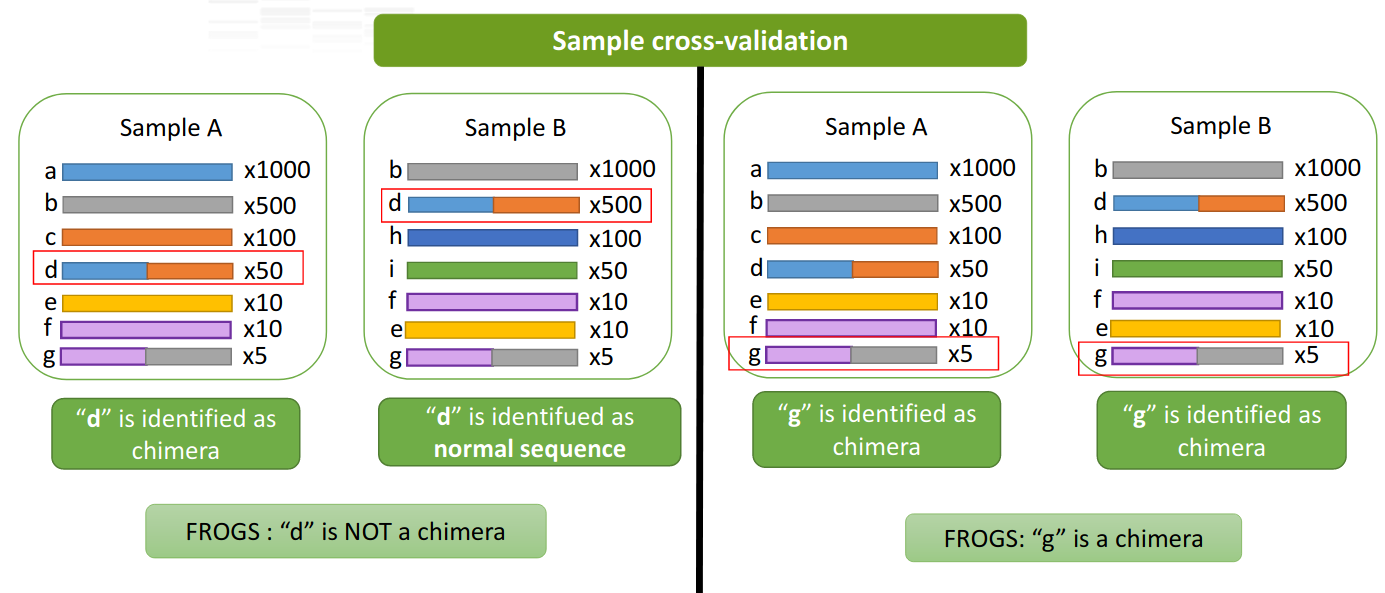

A little extra: the sample-cross validation

• FROGS adds a sample-cross validation

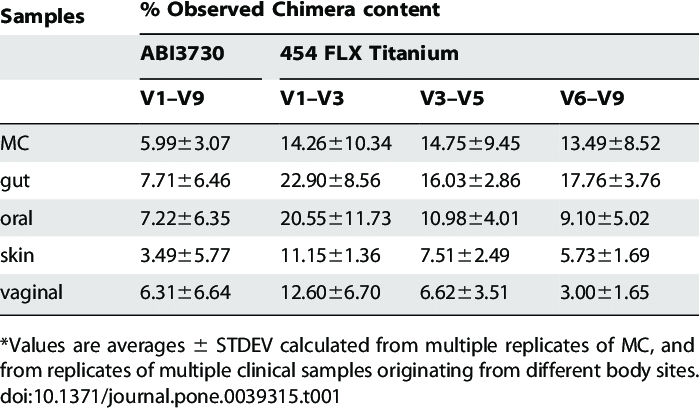

Chimera rates in samples

• From 5 to 40% in 16S data

• Few with ITS (<10%)

Ward et al., 2012: Evaluation of 16S rDNA-based community profiling for human microbiome research [11]

TP Frogs remove chimera

Abundance/Prevalence filters

How to filter clusters?

• Low abundant sequences
• Clusters not shown in few replicates
• Contamination

TP Frogs cluster filters

Taxonomic affiliation

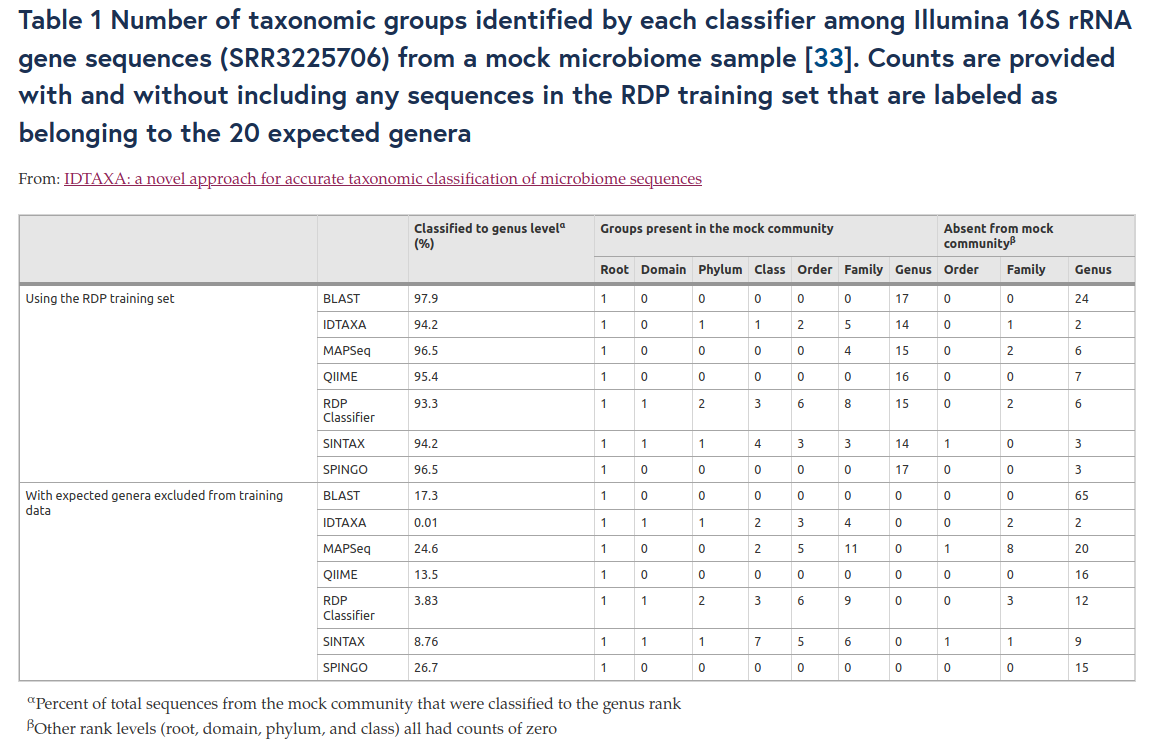

Comparison of approaches

Murali et al., 2018: IDTAXA: a novel approach for accurate taxonomic classification of microbiome sequences [12]

RDP problems

• Depends too much on the databank used!
• Gives one affiliation for each feature with bootstrap, on each subdivision

Bacteria;(1.0);Actinobacteriota;(1.0);Actinobacteria;(1.0);Propionibacteriales;(1.0);Propionibacteriaceae;(1.0);Cutibacterium;(1.0);Cutibacterium acnes;(0.57);

The FROGS recommandation

• Use Blast and not RDP
• Check Blast metrics to avoid concluding too fast
• Take care of the reference databank used!

Bacteria;Actinobacteriota;Actinobacteria;Propionibacteriales;Propionibacteriaceae;Cutibacterium;Multi

The FROGS databanks

• Command line: you can use your own databank
• Galaxy
  • You have access to several databanks
  • Admins have to add your databank
• The file must be well formated, we can do it for you
• For private databanks, contact us!

The FROGS extra: the multi-affiliations

• FROGS gives all identical hits

Bacteria;Firmicutes;Bacilli;Staphylococcales;Staphylococcaceae;Staphylococcus;Staphylococcus xylosus
Bacteria;Firmicutes;Bacilli;Staphylococcales;Staphylococcaceae;Staphylococcus;Staphylococcus saprophyticus

Strictly identical (V1-V3 amplification) on 499 nucleotides

• FROGS can’t decide if it’s one or another
• You have to check if you can choose between multi-affiliations

To help you

• https://shiny.migale.inrae.fr/app/affiliationexplorer
• a very user-friendly Shiny web app, allowing users to modify very simply the affiliations from a FROGS abundance file

Filter ASVs on their affiliation

Affiliation filters

• Remaining contamination?

• Want to analyse only the Firmicutes?

• 2 modes

  • Deleting: remove ASVs
  • Hiding: only the affiliation is modified, not the abundance

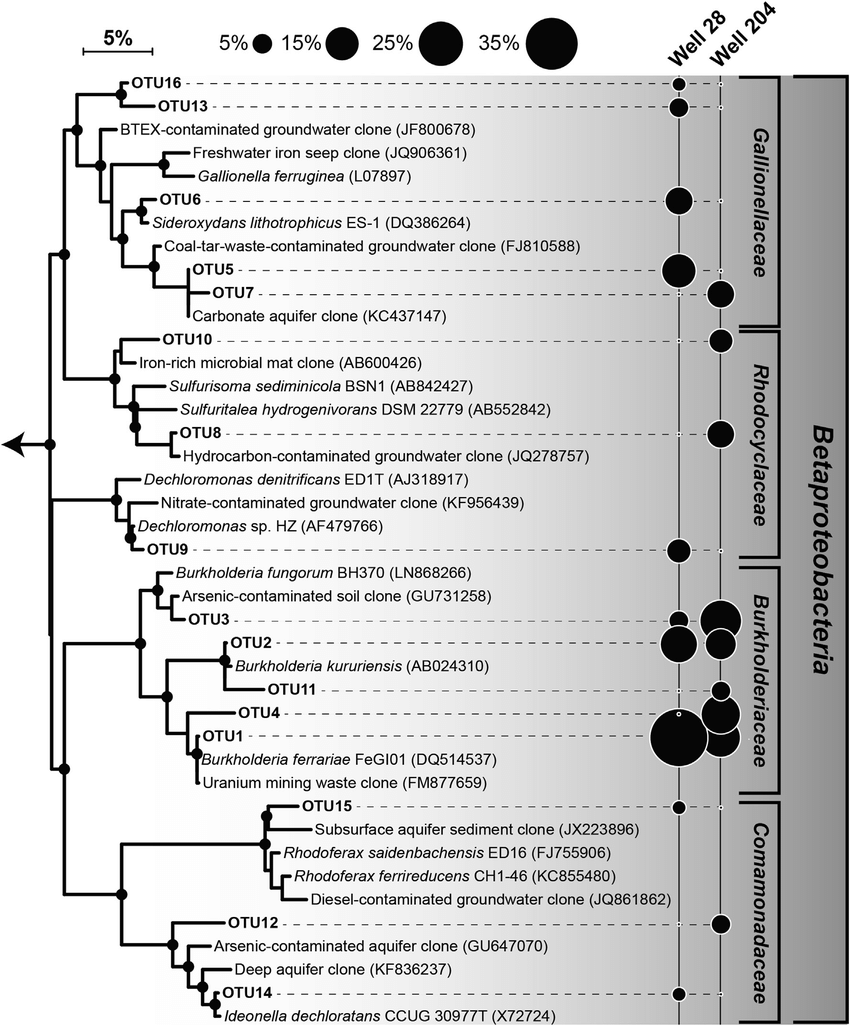

Phylogenetic tree

FROGS tree

• This tool builds a phylogenetic tree thanks to affiliations of ASVs contained in the BIOM file
• Needed to compute beta-diversity indices based on phylogenetic distances
• Interesting to explore poor-characterized environments

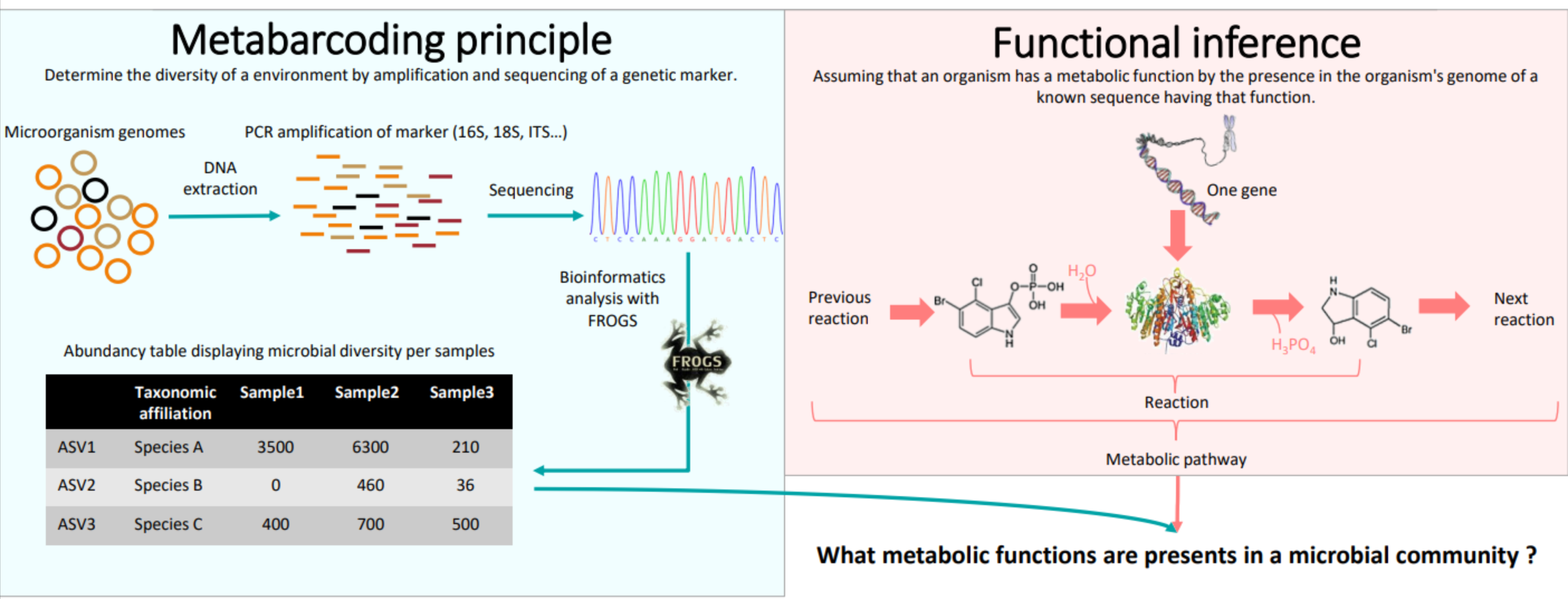

FROGSfunc: function inference

Concepts

Based on PICRUSt2

• PICRUSt [13] (Phylogenetic investigation of communities by reconstruction of unobserved states) is an open-source tool.
• It is a software for predicting functional abundances based only on marker gene sequences
• PICRUSt2 is composed of 4 python applications.
• No graphic interface exists to run PICRUSt2 for non-expert users.

Douglas et al., 2020: PICRUSt2 for prediction of metagenome functions [13]

How it works

1. Places the ASVs into a reference phylogenetic tree and predicts of marker copy number in each ASV.
2. Predicts number of function copy number in each ASV and calculates functions abundances in each sample and ASV abundances according to marker copy number.
3. Calculates pathway abundances in each sample.

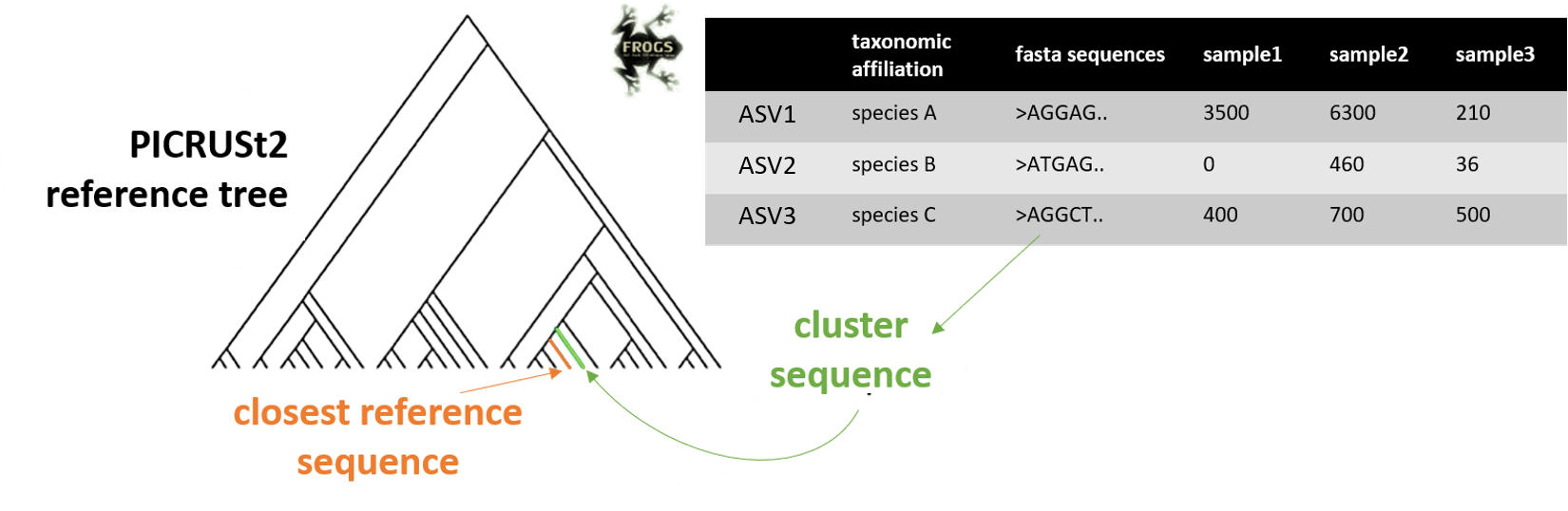

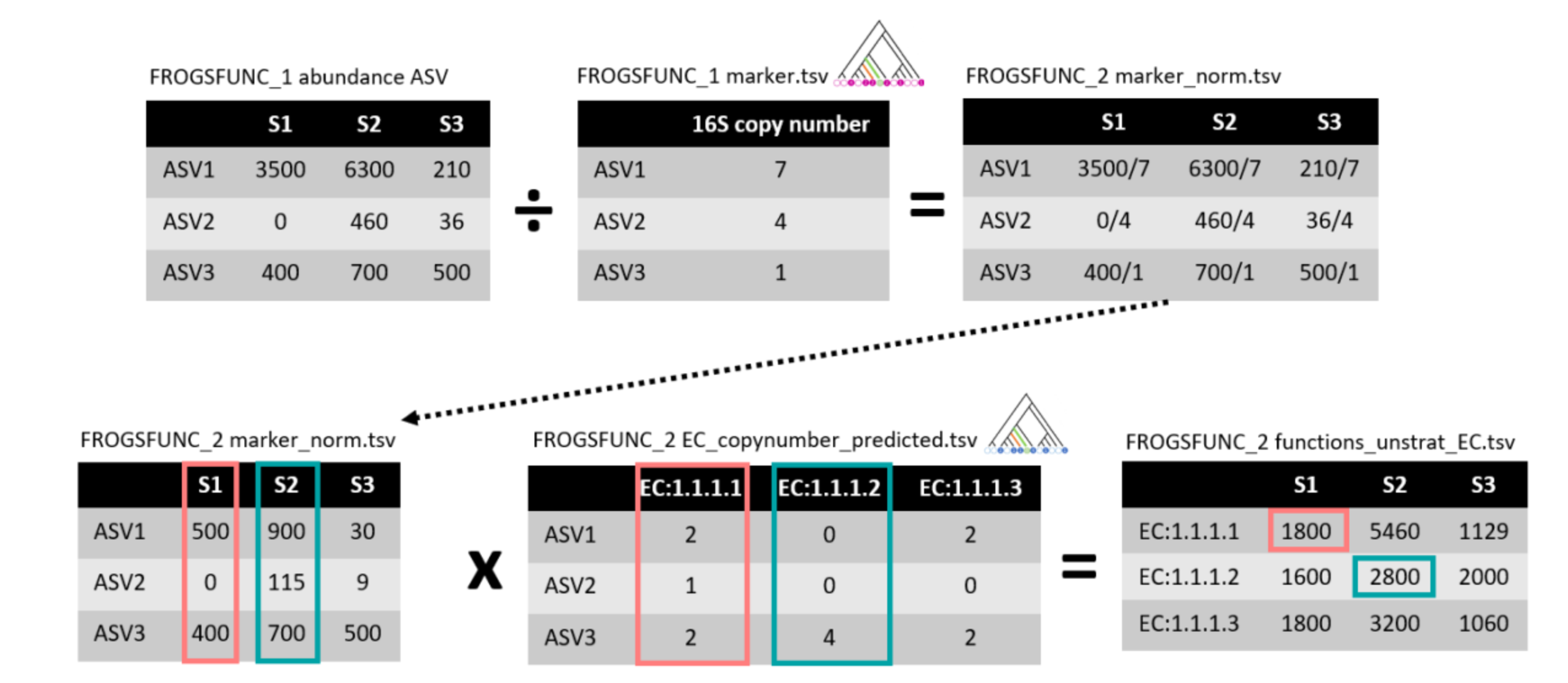

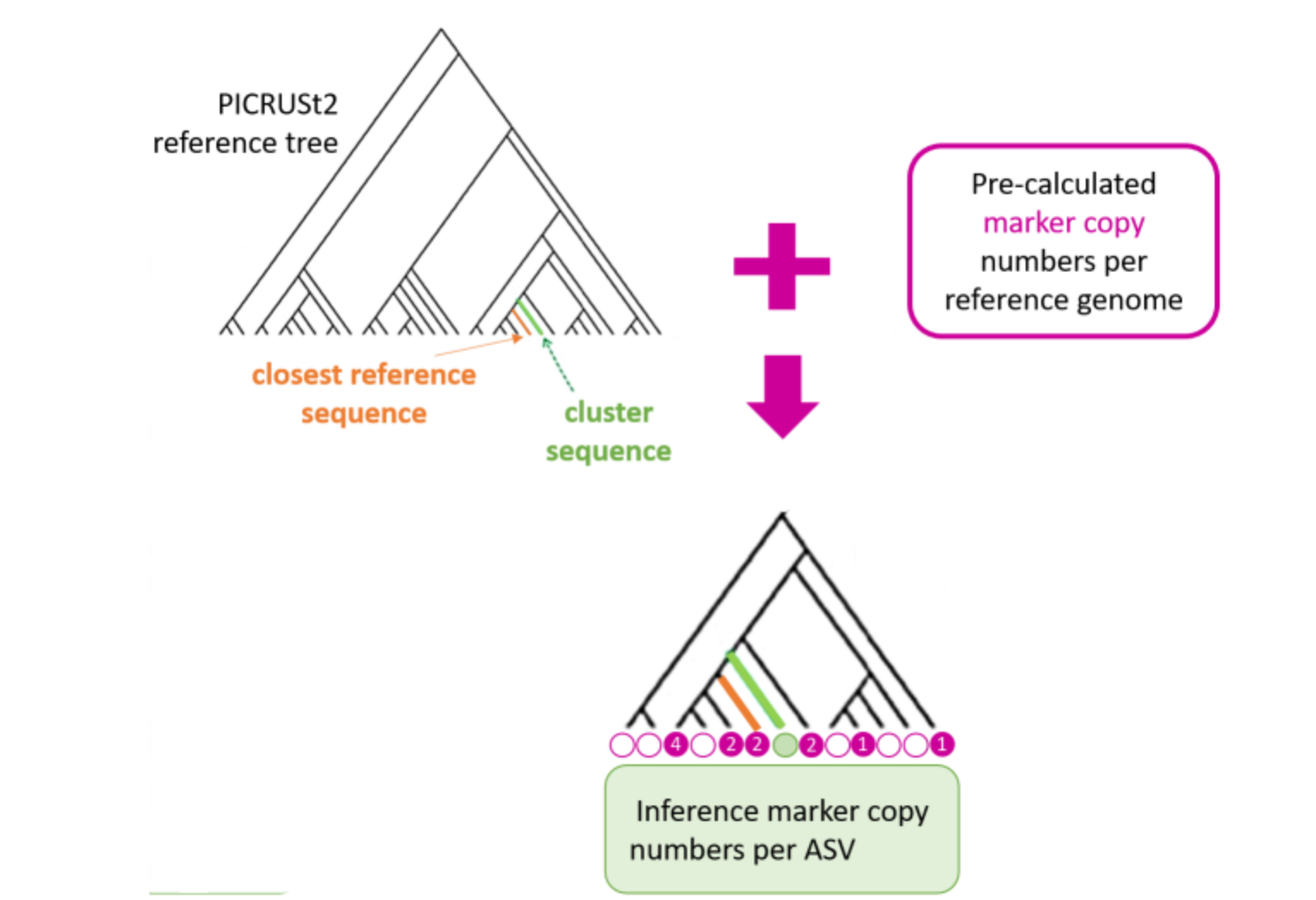

FROGSfunc placeseqs and copynumber

FROGSfunc placeseqs and copynumber

NSTI

• NSTI scores are simply the average branch length that separates each ASV in your sample from a reference bacterial genome, weighted by the abundance of that ASV in the sample.
• PICRUSt2 sets NSTI threshold to 2 per default. Some studies have shown that this threshold is permissive. Thus, it is important to see if the taxonomies between PICRUSt2 and FROGS are quite similar or not, in order to potentially choose a more stringent threshold afterwards.
  • 0 < Good < 0.5
  • 0.5 <= Medium < 1
  • 1 <= Bad < 2
  • To exclude >= 2

FROGSfunc functions

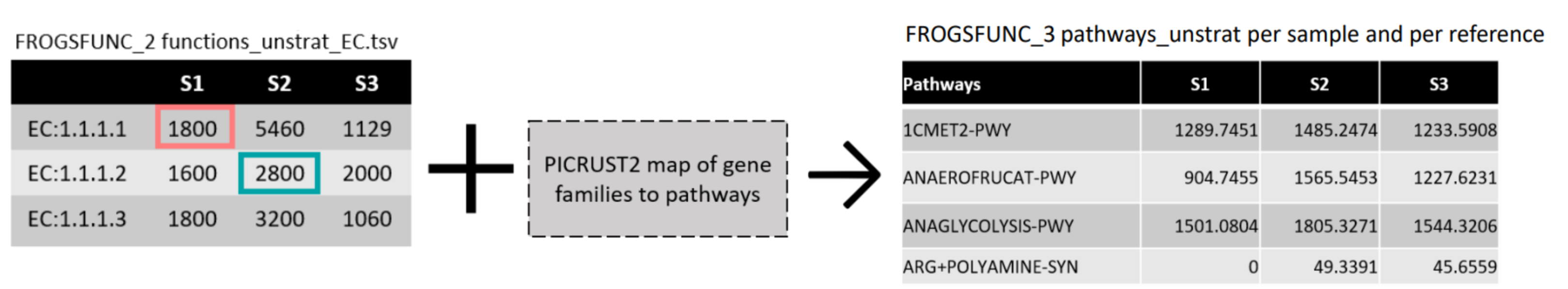

FROGSfunc pathways
